Jaguar / Landrover Cupholder

Dock for an iPhone with USB-C connector







I have produced all the parts required by 3D printing to hold the Apple iPhone USB-C plug in the corect position and enable the iPhone to connect to the cable. The kit includes all the fixing materials and support blocks, all you will need is a drill, either Ø 11mm or Ø 7/16" to make a hole in the bottom of the cupholder. The kit contains a drill guide so the hole is in the correct position to make the perfect result.



Suitable iPhones:-

If your iPhone fits into the support guides in the cupholder and has a USB-C connector, then this dock kit should work. It has been designed to accommadate phones that are in a case, so if the phone and case can be slotted into cupholder this will work.



Note:- The blocks have been specifically designed to securely fit the Apple cable supplied with the phone, if you intend using a clone version you may need to file the blocks slightly. Please contact me if you need advice or help, using the email link below.





Drill hole:-

1/ Remove cupholder from vehicle.

2/ Using either Ø 11mm or Ø 7/16" drill bit and the green drilling guide provided, locate it in position shown in Figure 1.

3/ While pushing guide into wedge feature, carefully drill the hole making sure the surface under cupholder isn't obstructed to prevent damage.

4/ Make sure all loose materal is removed and the area around the hole is clean and dry.



Installation:-

1/ Push the cable plug through the hole you just drilled Figure 2.

2/ Depending how well the blocks grip your particular plug you can place a small piece of double sided tape on one side or if you prefer both sides of plug as shown in Figure 4.

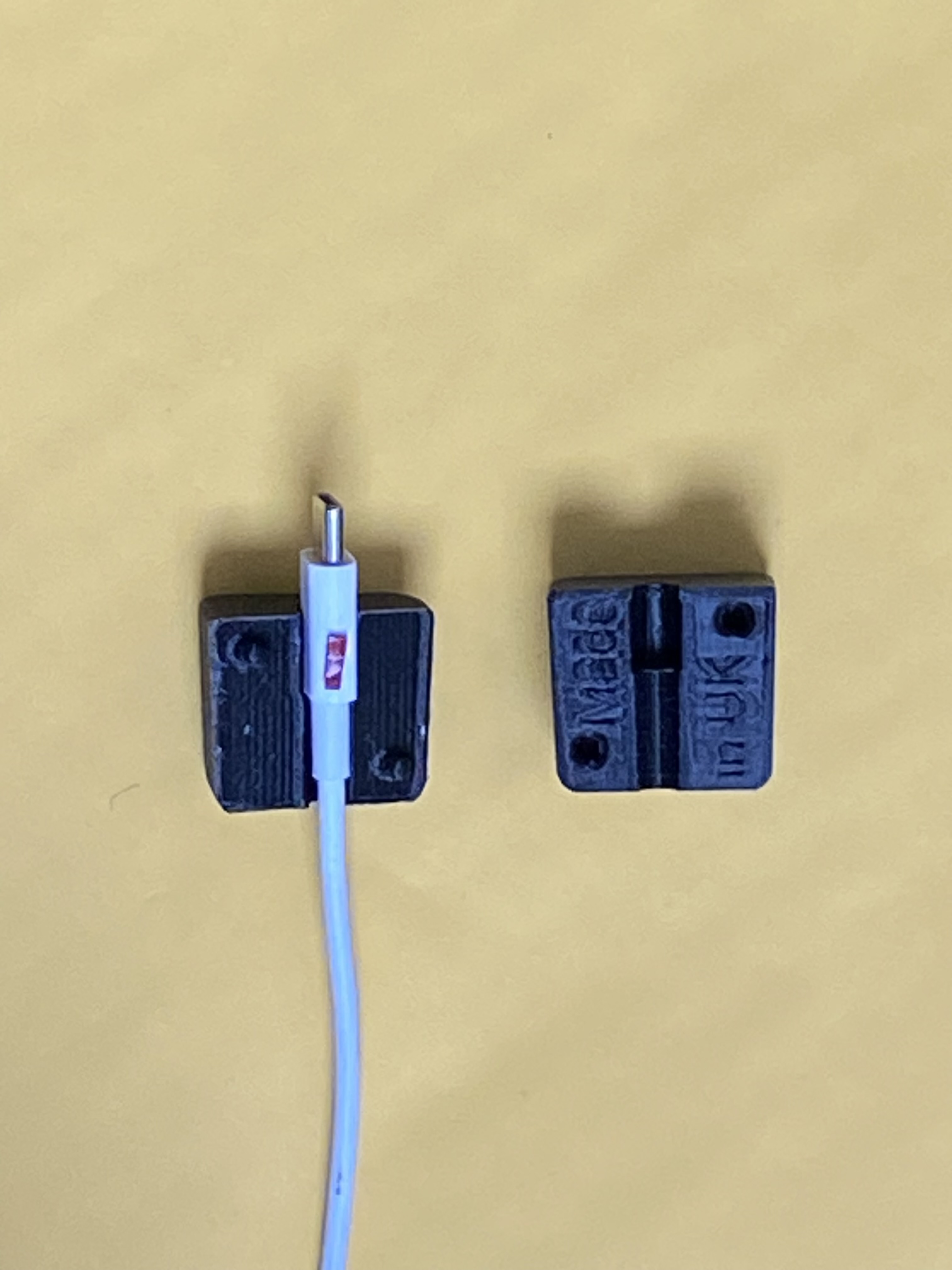

3/ Peal off backing material and place plug in one of the blocks Figure 5.

4/ Assemble the 2 halves of the black mounting blocks and push together as shown in Figure 6.

5/ While gripping the 2 halves together, apply the large shaped doubled sided tape to bottom of the 2 blocks Figure 8.

6/ Remove double sided tape backing material and carefully slide the assembly right into the wedge feature, then slide it downwards and push firmly into the base of cupholder Figure 9.

7/ Slide youe phone into cupholder and check it all fits Figure11.





Compatible vehicles:-

1/ The kit is suitable for the following models.

Jaguar I-PACE & E-PACE and Landrover Discovery





Price:-

1/ The complete kit of plastic parts and double sided tape is £21 including UK delivery. For European customers price including delivery is €29. Payment is by PayPal using the email address apherring@icloud.com.

Alternatively you can purchase it from Etsy :- Etsy Shop





For further details, questions and contact address please email me.
